Product Manual

Manual download

Step 1

Find a place where you wish to install system.

Step 2

Check that you have required tools and you will need:
1. plastic tube cutter or knife
2. 12 mm box spanner or 12 mm spanner for faucet fixing
3. drill
4. drill bits: 10 mm for faucet to sink and 6 mm for drain waste saddle

Step 3

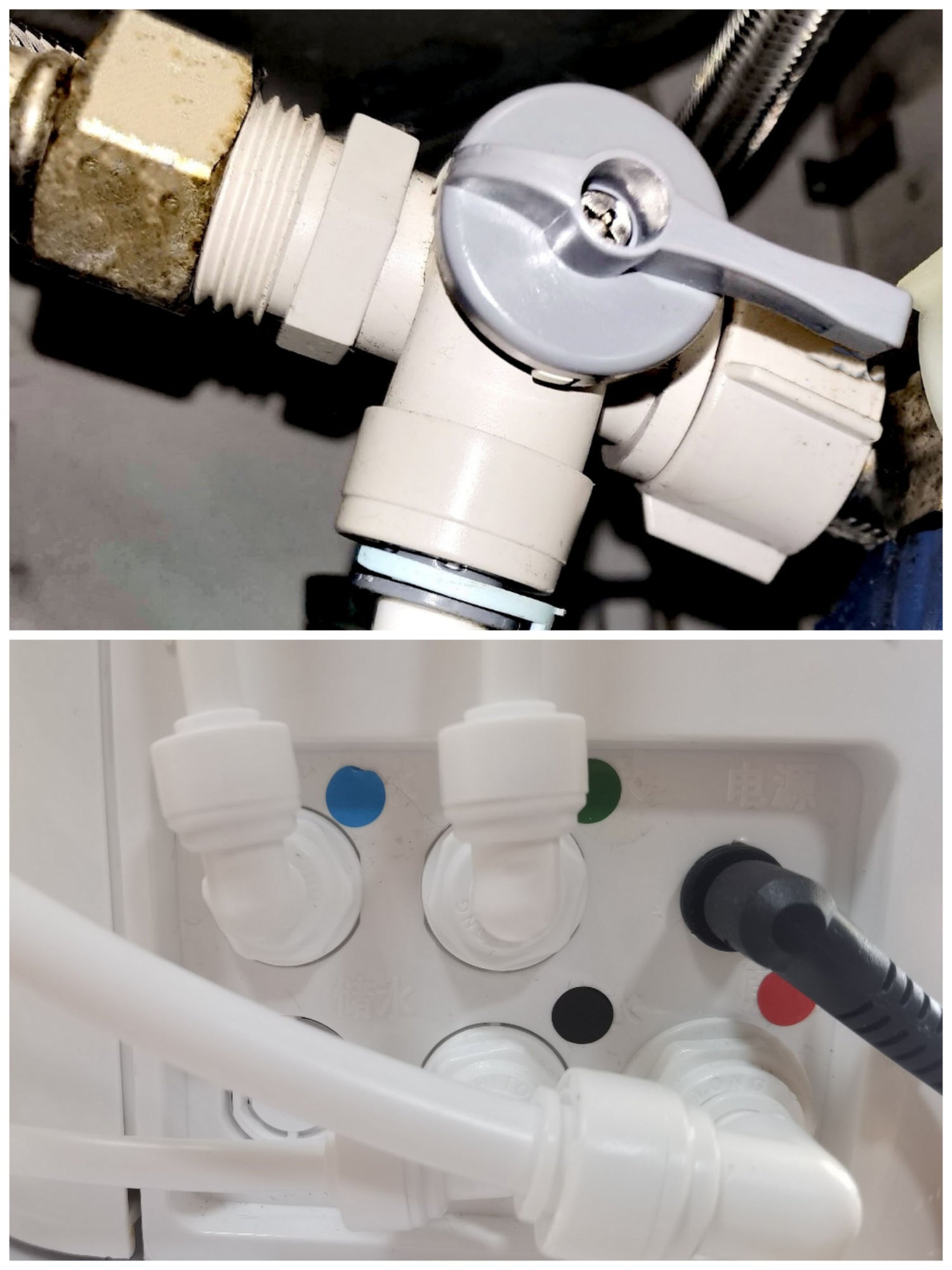

Remove factory blanking plastics and push 90 degree angle outlets until they click

Step 4

Connect 2 pipes to straight 1/4" connectors and push to water faucet inlets

Step 5

Mount water inlet valve and connect to system

Step 6

Connect pipe to Drain Water Clamp

Step 7

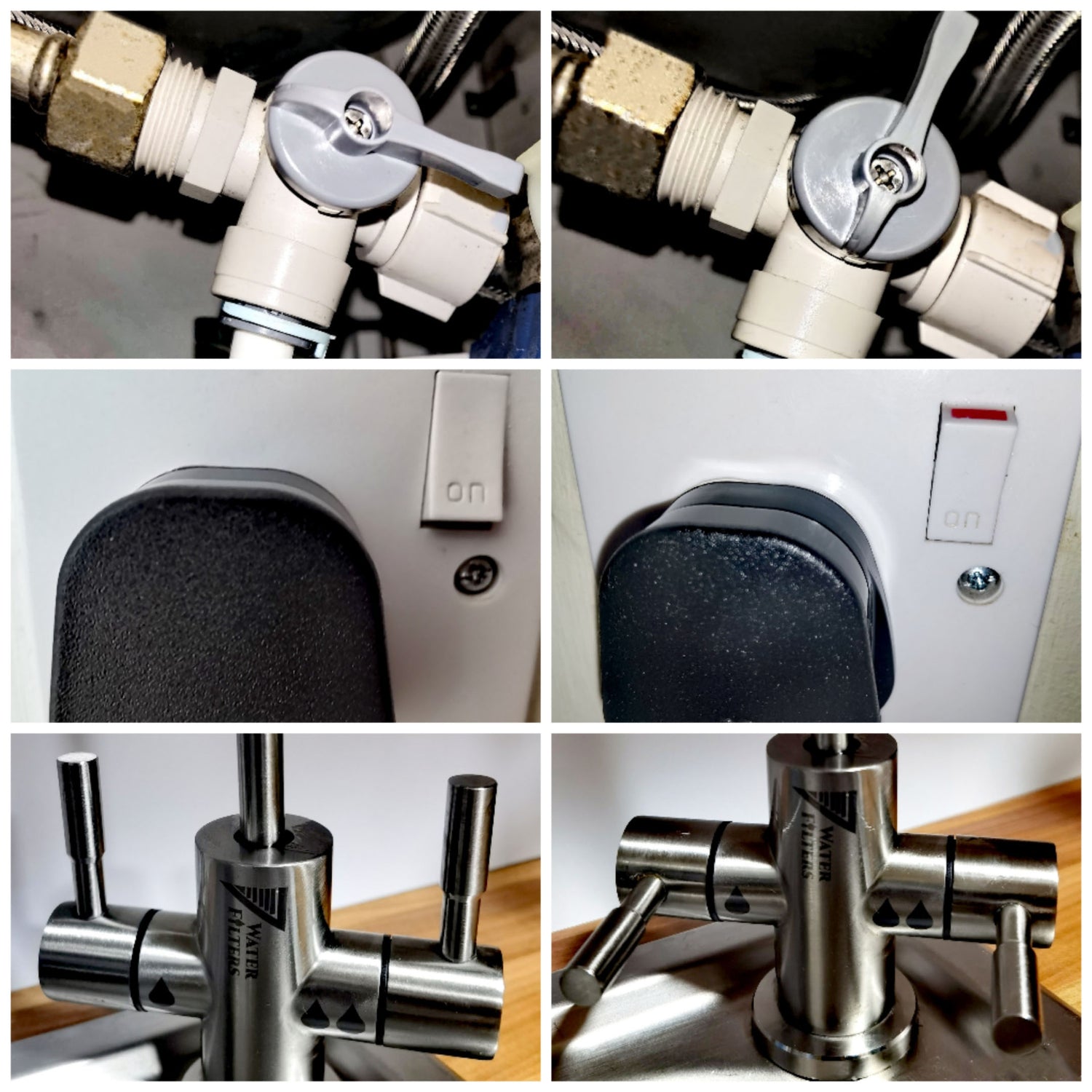

Please open water valve and turn power on
